Cisco · UCS X-Series

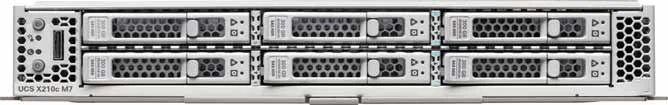

UCS X210c M7
2-socket compute node for the Cisco UCS X9508 modular chassis.
| OEM | Cisco |
|---|---|
| Family | UCS X-Series |
| Generation | M7 |
| Released | 2023 |
| Form factor | Blade / compute node |
| Processor sockets | 2 |
| Processor | 4th/5th Gen Intel Xeon Scalable |
| Max cores per CPU | 64 |
| Max cores per server | 128 |
| Max CPU TDP | 350 W |
| DIMM slots | 32 |
| Memory type | DDR5, up to 5600 MT/s |
| Max memory | 8 TB |
| Drive bays | Up to 6 hot-plug 2.5-inch SAS/SATA SSD or NVMe drives plus 2 M.2 boot |
| Max NVMe / 3.5" bays | 6 / ? |
| GPUs | Front mezzanine with up to 2 HHHL GPUs (NVIDIA L4, Intel Flex 140); more via X440p PCIe node |
| PCIe slots | ? (PCIe Gen4) |
| OCP 3.0 slots | Not published |
| Power supplies | ? |
| Management | Cisco Intersight / UCS Manager |
| Suited to | Virtualisation, Database / OLTP, VDI, Hyperconverged (HCI), General purpose, Containers / cloud-native |
Official sources:
https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-x-series-modular-system/ucs-x210c-m7-compute-node-ds.html ↗
Spec sheet: https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-x-series-modular-system/x210cm7-specsheet.pdf ↗
