Dell Technologies · PowerEdge

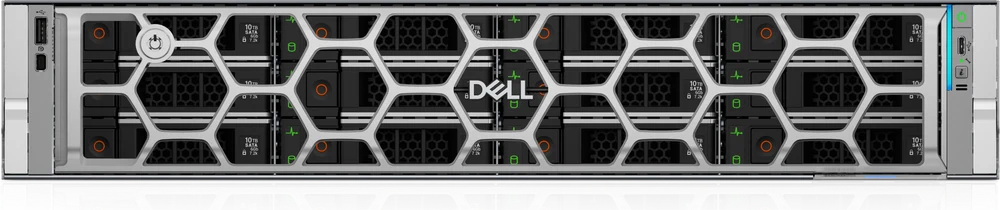

PowerEdge R570
2U single-socket Xeon 6 server for virtualization, scale-out database, VDI and software-defined storage.
| OEM | Dell Technologies |
|---|---|
| Family | PowerEdge |
| Generation | 17th Gen |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 1 |
| Processor | Intel Xeon 6 (E-core / P-core) |
| Max cores per CPU | 144 |
| Max cores per server | 144 |
| Max CPU TDP | Not published |
| DIMM slots | 16 |
| Memory type | DDR5, up to 6400 MT/s |
| Max memory | 4 TB |
| Drive bays | Up to 32 x E3.S NVMe, 24 x 2.5" SATA, 8 x 2.5" NVMe or 12 x 3.5" SATA front, plus 4 x E3.S NVMe rear |
| Max NVMe / 3.5" bays | 36 / 12 |
| GPUs | Up to 3 x 400W DW or 4 x 75W SW |
| PCIe slots | 6 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 1,800 W, redundant |
| Management | iDRAC10 |
| Suited to | Virtualisation, Database / OLTP, VDI, Software-defined storage |
Official sources:
https://www.dell.com/en-us/shop/ipovw/poweredge-r570 ↗
Spec sheet: https://www.delltechnologies.com/asset/en-us/products/servers/technical-support/poweredge-r570-spec-sheet.pdf ↗
