Dell Technologies · PowerEdge

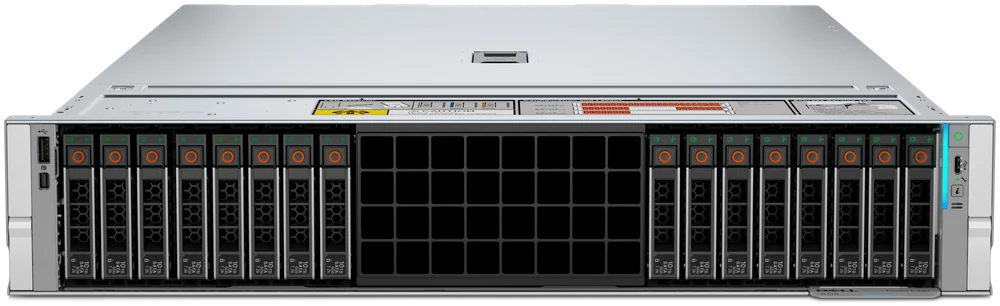

PowerEdge R770
2U dual-socket Xeon 6 server with up to 1.69x better perf/watt for virtualization, AI inferencing and scale-out databases.
| OEM | Dell Technologies |
|---|---|
| Family | PowerEdge |
| Generation | 17th Gen |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | Intel Xeon 6 (E-core / P-core) |
| Max cores per CPU | 144 |
| Max cores per server | 288 |
| Max CPU TDP | Not published |
| DIMM slots | 32 |
| Memory type | DDR5, up to 6400 MT/s |
| Max memory | 8 TB |
| Drive bays | Up to 40 x E3.S NVMe or 24 x 2.5" SATA / 16 SATA + 8 NVMe front, plus 4 x E3.S NVMe rear |
| Max NVMe / 3.5" bays | 44 / 0 |
| GPUs | Up to 2 x 450W DW or 6 x 75W SW |
| PCIe slots | 8 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 3,200 W, redundant |
| Management | iDRAC10 |
| Suited to | Virtualisation, AI inference, Containers / cloud-native, Database / OLTP |
Official sources:
https://www.dell.com/en-us/shop/ipovw/poweredge-r770 ↗
Spec sheet: https://www.delltechnologies.com/asset/en-us/products/servers/technical-support/poweredge-r770-spec-sheet.pdf ↗
