Fujitsu (Fsas Technologies) · PRIMERGY

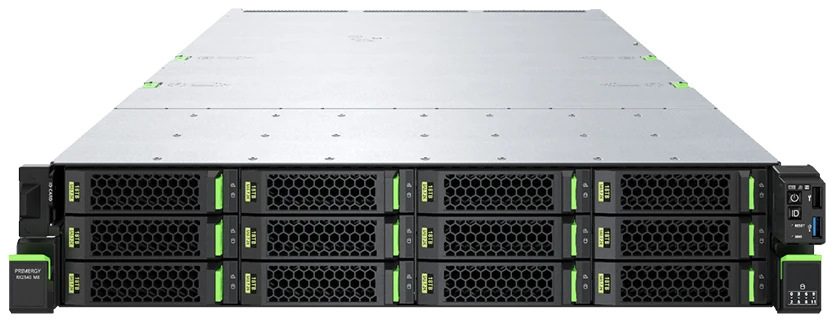

PRIMERGY RX2540 M8
2U dual-socket data center standard with Xeon 6 P-cores, up to 8 TB DDR5 and up to 8 PCIe 5.0 slots for business-critical, AI and in-memory workloads.
| OEM | Fujitsu (Fsas Technologies) |
|---|---|
| Family | PRIMERGY |
| Generation | M8 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | Intel Xeon 6 (6500P/6700P) with P-cores |
| Max cores per CPU | 86 |
| Max cores per server | 172 |
| Max CPU TDP | 350 W |
| DIMM slots | 32 |
| Memory type | DDR5 RDIMM / MRDIMM, up to 8000 MT/s |
| Max memory | 8 TB |
| Drive bays | Up to 24 x 2.5" SAS/SATA/NVMe or 12 x 3.5" SAS/SATA front bays, optional rear 2.5" bays and 2 x hot-plug M.2 |
| Max NVMe / 3.5" bays | 24 / 12 |
| GPUs | Up to 2 x double-width or 6 x single-width NVIDIA GPUs (e.g. H200 NVL) |
| PCIe slots | 8 (PCIe Gen5) |
| OCP 3.0 slots | 1 |
| Power supplies | up to 2,400 W, redundant |
| Management | iRMC S6 |
| Suited to | Virtualisation, Database / OLTP, AI inference, ERP (SAP etc.), General purpose, HPC |
Official sources:
https://eu.fsastech.com/eu/products-services/primergy-servers/primergy-rx2540-m8/ ↗
Spec sheet: https://sp.ts.fujitsu.com/dmsp/Publications/public/ds-py-rx2540-m8-en.pdf ↗
