Fujitsu (Fsas Technologies) · PRIMERGY

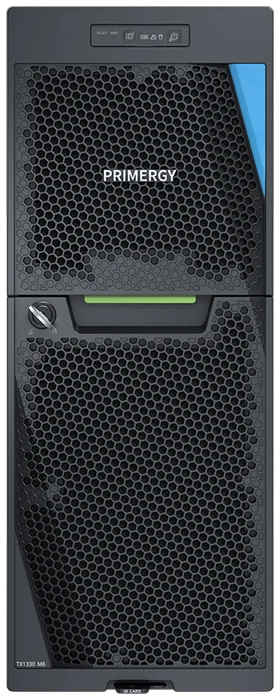

PRIMERGY TX1330 M6
Mono-socket tower server for SMEs with up to 128 GB DDR5, up to 24 x 2.5-inch drives and redundant PSUs.
| OEM | Fujitsu (Fsas Technologies) |
|---|---|
| Family | PRIMERGY |
| Generation | M6 |
| Released | Not published |
| Form factor | Tower |
| Processor sockets | 1 |
| Processor | Intel Xeon 6300P / Xeon E-2400 |
| Max cores per CPU | Not published |
| Max cores per server | Not published |
| Max CPU TDP | Not published |
| DIMM slots | 4 |
| Memory type | DDR5 UDIMM, up to 4400 MT/s |
| Max memory | 128 GB |
| Drive bays | Up to 24 x 2.5" or 12 x 3.5" hot-plug SAS/SATA |
| Max NVMe / 3.5" bays | ? / 12 |
| GPUs | ? double-wide / ? single-wide |
| PCIe slots | 4 (PCIe Gen5) |
| OCP 3.0 slots | Not published |
| Power supplies | up to 900 W, redundant |
| Management | iRMC S6 |
| Suited to | General purpose, File & print / SMB, Backup target, Storage / file server |
Official sources:
https://eu.fsastech.com/eu/products-services/primergy-servers/primergy-tx1330-m6/ ↗
Spec sheet: https://sp.ts.fujitsu.com/dmsp/Publications/public/ds-py-tx1330-m6-en.pdf ↗
