Huawei · Atlas 800

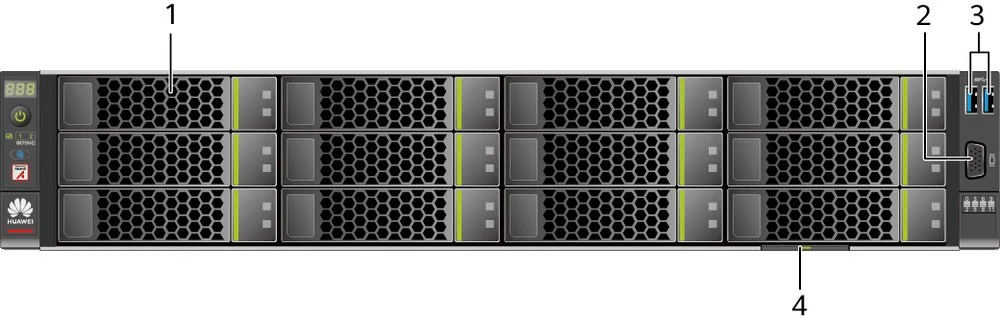

Atlas 800 Inference Server (Model 3000)
2U Kunpeng inference server with 8 Atlas 300I cards for 640-channel real-time HD video analytics.
| OEM | Huawei |
|---|---|
| Family | Atlas 800 |
| Generation | Atlas 800 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | Kunpeng 920 (7260/5250/5220/3210) |
| Max cores per CPU | 64 |
| Max cores per server | 128 |
| Max CPU TDP | 180 W |
| DIMM slots | 32 |
| Memory type | DDR4, up to 2933 MT/s |
| Max memory | 4 TB |
| Drive bays | 25 x 2.5" SAS/SATA, 12 x 3.5" SAS/SATA, or 8 x 2.5" SAS/SATA + 12 x 2.5" NVMe |
| Max NVMe / 3.5" bays | 12 / 12 |
| GPUs | Up to 8 x Atlas 300I inference cards (up to 704 TOPS INT8) |
| PCIe slots | 8 (PCIe Gen4) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 2,000 W, redundant |
| Management | iBMC (IPMI, SOL, KVM over IP, virtual media) |
| Suited to | AI inference, Analytics / big data, Edge / branch |
Official sources: https://support.huawei.com/enterprise/en/doc/EDOC1100114904/99287574/technical-specifications ↗
