Huawei · TaiShan 200

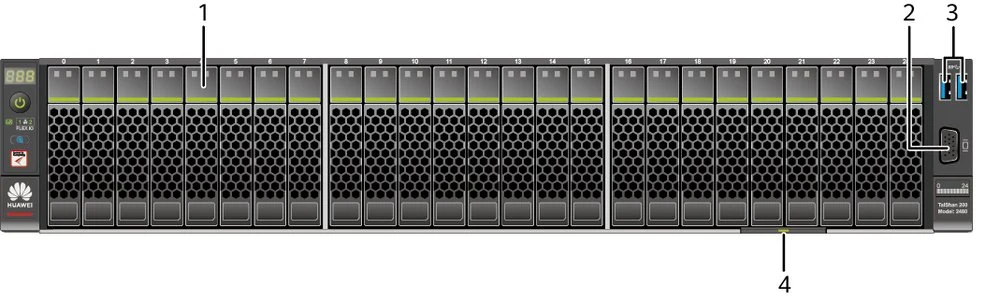

TaiShan 200 Server (Model 2480)
2U 4-socket Kunpeng 920 high-performance server with up to 256 cores for compute-intensive workloads.
| OEM | Huawei |
|---|---|
| Family | TaiShan 200 |
| Generation | TaiShan 200 (Kunpeng 920) |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 4 |
| Processor | Kunpeng 920 (7260/5250/5230) |
| Max cores per CPU | 64 |
| Max cores per server | 256 |
| Max CPU TDP | 180 W |
| DIMM slots | 32 |
| Memory type | DDR4, up to 2933 MT/s |
| Max memory | 2 TB |
| Drive bays | 8 x 2.5", 24 x 2.5" (RAID pass-through) or 25 x 2.5" (expander) SAS/SATA front drives |
| Max NVMe / 3.5" bays | ? / ? |
| GPUs | ? double-wide / ? single-wide |
| PCIe slots | 9 (PCIe Gen4) |
| OCP 3.0 slots | 1 |
| Power supplies | ? |
| Management | iBMC (IPMI, SOL, KVM over IP, virtual media) |
| Suited to | Database / OLTP, Analytics / big data, HPC, Virtualisation |
Official sources: https://support.huawei.com/enterprise/en/doc/EDOC1100271562/f08db94c/technical-specifications ↗
