Inspur (IEIT Systems) · General Purpose

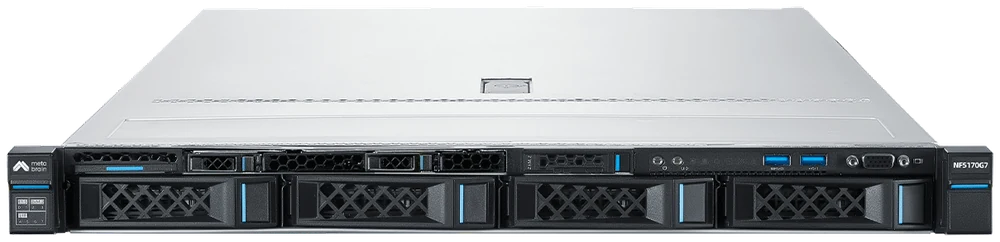

NF5170M7
Cost-effective 1U 2S rack server (NF5170G7) balancing performance and power for cloud and virtualization.
| OEM | Inspur (IEIT Systems) |
|---|---|
| Family | General Purpose |
| Generation | M7 |
| Released | Not published |
| Form factor | Rack 1U |
| Processor sockets | 2 |
| Processor | 4th Gen Intel Xeon Scalable |
| Max cores per CPU | 32 |
| Max cores per server | 64 |
| Max CPU TDP | 225 W |
| DIMM slots | 16 |
| Memory type | DDR5, up to 4800 MT/s |
| Max memory | Not published |
| Drive bays | 10x 2.5" SAS/SATA/NVMe or 4x 3.5" + 2 M.2 + 2 E1.S |
| Max NVMe / 3.5" bays | 10 / 4 |
| GPUs | ? double-wide / ? single-wide |
| PCIe slots | 4 (PCIe Gen4) |
| OCP 3.0 slots | Not published |
| Power supplies | up to 1,300 W, redundant |
| Management | IEIT BMC (AST2600, IPMI/Redfish) |
| Suited to | Containers / cloud-native, Virtualisation, Web / app tier, General purpose |
Official sources:
https://en.ieisystem.com/product/server/10345.html ↗
Spec sheet: https://en.ieisystem.com/pdf_details.thtml?id=10354 ↗
