Lenovo · ThinkSystem

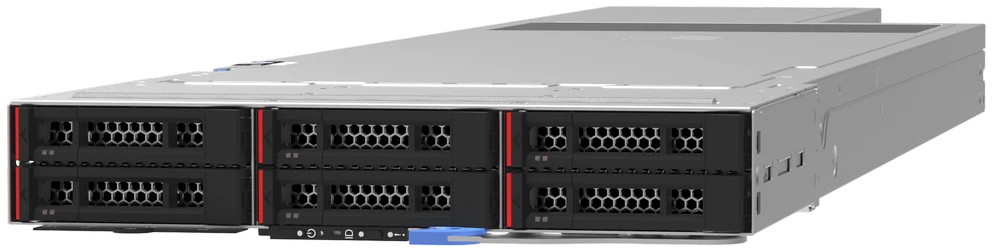

ThinkSystem SD535 V3
Single-socket half-wide node in the 2U4N ThinkSystem D3 Chassis for a cost-efficient scale-out platform.
| OEM | Lenovo |
|---|---|
| Family | ThinkSystem |
| Generation | V3 |
| Released | 2024 |
| Form factor | Multi-node 2U |
| Processor sockets | 1 |
| Processor | AMD EPYC 9005/9004 |
| Max cores per CPU | 192 |
| Max cores per server | 192 |
| Max CPU TDP | 500 W |
| DIMM slots | 12 |
| Memory type | DDR5, up to 6400 MT/s |
| Max memory | 1.5 TB |
| Drive bays | 6x 2.5-inch hot-swap AnyBay bays per node (SSDs only), plus M.2 |
| Max NVMe / 3.5" bays | 6 / 0 |
| GPUs | 1x single-wide GPU per node |
| PCIe slots | 1 (PCIe Gen5) |
| OCP 3.0 slots | 1 |
| Power supplies | up to 2,700 W, redundant |
| Management | XClarity Controller 2 (XCC2) |
| Suited to | Containers / cloud-native, HPC, Virtualisation, Web / app tier, Hyperconverged (HCI) |
Official sources:
https://lenovopress.lenovo.com/lp1892-thinksystem-sd535-v3-server ↗
Spec sheet: https://lenovopress.lenovo.com/datasheet/ds0179-thinksystem-sd535-v3 ↗
