Supermicro · Storage
SSG-222B-NE3X24R

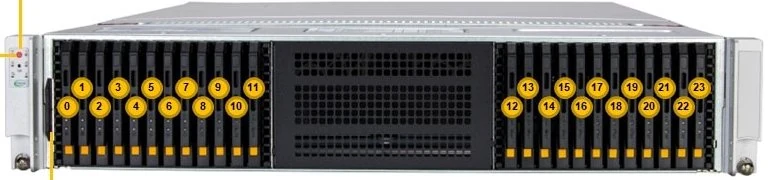

2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0.
| OEM | Supermicro |
|---|---|
| Family | Storage |
| Generation | X14 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | Intel Xeon 6 (6700/6500 series) |
| Max cores per CPU | 144 |
| Max cores per server | 288 |
| Max CPU TDP | 350 W |
| DIMM slots | 32 |
| Memory type | DDR5, up to 6400 MT/s |
| Max memory | 8 TB |
| Drive bays | 24 (up to 32) front hot-swap E3.S PCIe 5.0 NVMe bays; CXL Type 3 support |
| Max NVMe / 3.5" bays | 32 / 0 |
| GPUs | Up to 2 double-width GPUs (300W) |
| PCIe slots | 3 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 2,000 W, redundant |
| Management | Supermicro BMC (IPMI 2.0/Redfish) |
| Suited to | Storage / file server, Software-defined storage, Analytics / big data, AI training |
Official sources: https://www.supermicro.com/en/products/system/storage/2u/ssg-222b-ne3x24r ↗
