Supermicro · CloudDC
SYS-121C-TN10R

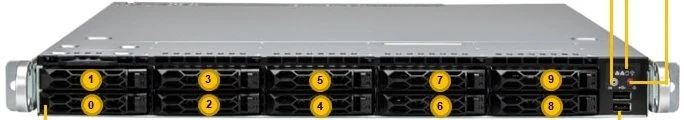

1U CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots.
| OEM | Supermicro |
|---|---|
| Family | CloudDC |
| Generation | X13 |
| Released | Not published |
| Form factor | Rack 1U |
| Processor sockets | 2 |
| Processor | 4th/5th Gen Intel Xeon Scalable |
| Max cores per CPU | 36 |
| Max cores per server | 72 |
| Max CPU TDP | 270 W |
| DIMM slots | 16 |
| Memory type | DDR5, up to 5600 MT/s |
| Max memory | 4 TB |
| Drive bays | 10 hot-swap 2.5" NVMe/SAS/SATA bays + 2 M.2 |
| Max NVMe / 3.5" bays | 10 / 0 |
| GPUs | Up to 2 single-width GPUs (NVIDIA A2/L4, Intel Flex 140) |
| PCIe slots | 2 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 860 W, redundant |
| Management | Supermicro BMC (IPMI 2.0/Redfish) |
| Suited to | Containers / cloud-native, Web / app tier, Virtualisation, General purpose |
Official sources: https://www.supermicro.com/en/products/system/clouddc/1u/sys-121c-tn10r ↗
