Supermicro · Hyper

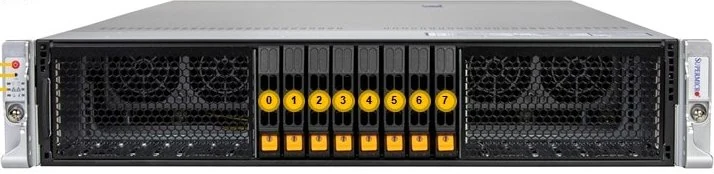

SYS-212H-TN
2U UP Hyper with up to 24 hot-swap 2.5" NVMe/SAS/SATA bays and up to 8 PCIe 5.0 + 2 PCIe 5.0 AIOM slots.
| OEM | Supermicro |
|---|---|
| Family | Hyper |
| Generation | X14 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 1 |
| Processor | Intel Xeon 6 (6700/6500 series) |
| Max cores per CPU | 144 |
| Max cores per server | 144 |
| Max CPU TDP | 350 W |
| DIMM slots | 16 |
| Memory type | DDR5 (RDIMM/MRDIMM), up to 8000 MT/s |
| Max memory | 4 TB |
| Drive bays | 8/16/24 hot-swap 2.5" NVMe/SAS/SATA bays + 2 M.2 |
| Max NVMe / 3.5" bays | 24 / 0 |
| GPUs | Up to 4 double-width or 8 single-width GPUs (e.g. NVIDIA H200 NVL, L40S, L4) |
| PCIe slots | 8 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 2,600 W, redundant |
| Management | Supermicro BMC (IPMI 2.0/Redfish) |
| Suited to | Virtualisation, AI inference, Software-defined storage, Containers / cloud-native, General purpose |
Official sources: https://www.supermicro.com/en/products/system/hyper/2u/sys-212h-tn ↗
