Supermicro · Hyper

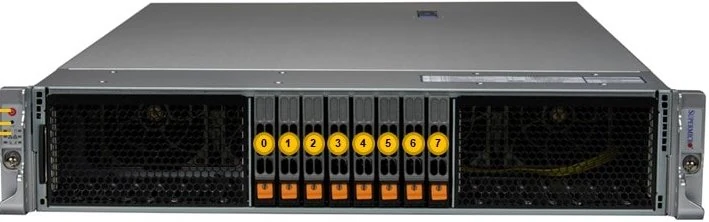

SYS-221H-TNR
2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots.
| OEM | Supermicro |
|---|---|
| Family | Hyper |
| Generation | X13 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | 4th/5th Gen Intel Xeon Scalable |
| Max cores per CPU | 64 |
| Max cores per server | 128 |
| Max CPU TDP | 350 W |
| DIMM slots | 32 |
| Memory type | DDR5, up to 5600 MT/s |
| Max memory | 8 TB |
| Drive bays | 8 or 16 hot-swap 2.5" NVMe/SAS/SATA bays + 2 M.2 |
| Max NVMe / 3.5" bays | 16 / 0 |
| GPUs | Up to 4 double-width or 8 single-width GPUs (e.g. NVIDIA H100 NVL, L40S, L4) |
| PCIe slots | 8 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 1,200 W, redundant |
| Management | Supermicro BMC (IPMI 2.0/Redfish) |
| Suited to | Virtualisation, Database / OLTP, AI inference, Containers / cloud-native, General purpose |
Official sources: https://www.supermicro.com/en/products/system/hyper/2u/sys-221h-tnr ↗
