Supermicro · Edge / IoT

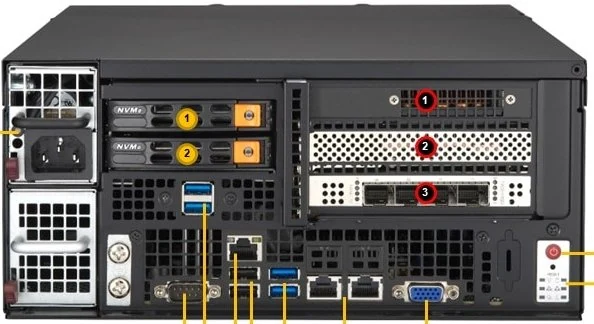

SYS-E403-13E-FRN2T
Compact box-PC edge server with a 5th/4th Gen Xeon and GPU support.
| OEM | Supermicro |
|---|---|
| Family | Edge / IoT |
| Generation | X13 |
| Released | Not published |
| Form factor | Edge |
| Processor sockets | 1 |
| Processor | 4th/5th Gen Intel Xeon Scalable |
| Max cores per CPU | 32 |
| Max cores per server | 32 |
| Max CPU TDP | 300 W |
| DIMM slots | 8 |
| Memory type | DDR5, up to 5600 MT/s |
| Max memory | 2 TB |
| Drive bays | 2 front hot-swap 2.5" NVMe + 2 internal 2.5" SATA bays |
| Max NVMe / 3.5" bays | 2 / 0 |
| GPUs | Up to 1 double-width or 2 single-width GPUs (e.g. NVIDIA L40S, A10) |
| PCIe slots | 3 (PCIe Gen5) |
| OCP 3.0 slots | Not published |
| Power supplies | up to 800 W |
| Management | Supermicro BMC (IPMI 2.0/Redfish) |
| Suited to | Edge / branch, AI inference, Telco / NFV |
Official sources: https://www.supermicro.com/en/products/system/iot/fan-based%20embedded/sys-e403-13e-frn2t ↗
