xFusion · FusionServer

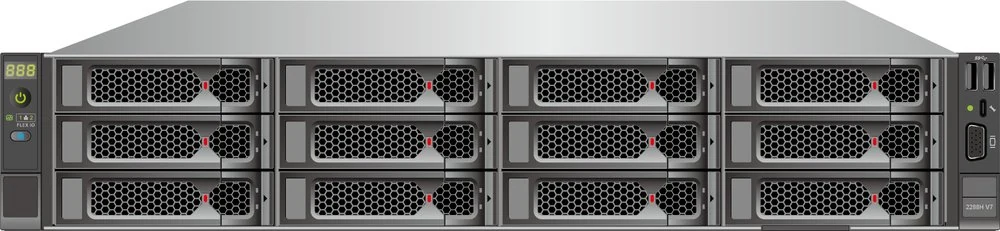

FusionServer 2288H V7
New-generation 2U 2-socket rack server for SDS, VDI, CDN, virtualization, big data, database, cloud and AI inference.
| OEM | xFusion |
|---|---|
| Family | FusionServer |
| Generation | V7 |
| Released | Not published |
| Form factor | Rack 2U |
| Processor sockets | 2 |
| Processor | 4th/5th Gen Intel Xeon Scalable |
| Max cores per CPU | Not published |
| Max cores per server | Not published |
| Max CPU TDP | 385 W |
| DIMM slots | 32 |
| Memory type | DDR5, up to 5600 MT/s |
| Max memory | Not published |
| Drive bays | Up to 45 x 2.5" SAS/SATA, 18 x 3.5", or 28 x NVMe U.2 SSDs; plus 2 x M.2 with hardware RAID |
| Max NVMe / 3.5" bays | 28 / 18 |
| GPUs | Up to 4 x dual-width or 14 x single-width GPUs |
| PCIe slots | 17 (PCIe Gen5) |
| OCP 3.0 slots | 2 |
| Power supplies | up to 3,000 W, redundant |
| Management | iBMC (Redfish, SNMP, IPMI 2.0); optional FusionDirector |
| Suited to | Software-defined storage, VDI, Virtualisation, Analytics / big data, Database / OLTP, Containers / cloud-native, AI inference, Web / app tier |
Official sources: https://www.xfusion.com/en/product/rack-server/fusionserver-2288h-v7 ↗
